Description
Model: JC-15KWA
Name：RF PVC Tensile Fabric welding machine auto stepping for making PVC Tensile Fabric Structure
Brief description：
RF PVC Tensile Fabric welding machine is model of high frequency PVC welder plastic coated Tensile Structure coating fabric and Tension welding equipment.This is a standard model of JCwelder high frequency welding machine series.
Applications:
Radio frequency PVC coated Tensile Structure/coating fabric and Tensile/PVC Tension Fabric Structure welding machine raw material auto dragging design is especially designed for welding tarpaulin,emergency relief,fabric buildings,Fabric Doors, Rapid Doors,Fire Retardant Tarps,flatbed tarps,Flexible air ducts,Frame Tents,gazebos / screen rooms,golf green covers,Greenhouse covers,Gym floor covers,Hay tarps,heat pump covers,Heavy duty roof covers,High Frequency corner and lug welding,High pressure inflatable tents,High Speed Roll-Up Doors,High-Peak Festival Tents,Swimming pool covers, magnetic self-absorption transparent pvc soft curtain, architectural tensile Umbrella, big size fabric tensile membrane structures, tarpaulin car Parking shades, computer advertising , Inflatable Water pillow Tank, PVC Canopy tent, pvc painting canvas, pvc clear handbag, inflatable PVC Advertising Inflatable balloon,pvc spark protection cloth ,tent of truck, canvas of agricultural, pvc digesters, …etc
Features:
- Machine groove deep and wide ,convenient in welding with large area.
- the working table of this model is from 6meter~30meter that made customized
- The inner tank for keeping welded material is 300mm*300mm customized
- Firmly weld ,be well meeting with materials of thick or thin.
- It is convenience in continuous welding, the welding length is optional
- high sensitive anti sparkle device NL5557 to avoid damaging the mould.
- European standard oscillatory square box, reliable and Stable in output.
- Laser scan system, precise positioning welding.
- Is good at the welding for big size products like air support structure.
- Pneumatic press with adjustable dimension of active horn
- automatic PLC steering control for the movement
- With counter for controlling the length, traveled distance and weld cycle number.
- Rails Moving structure design for smooth motion and exact movement/distance control.

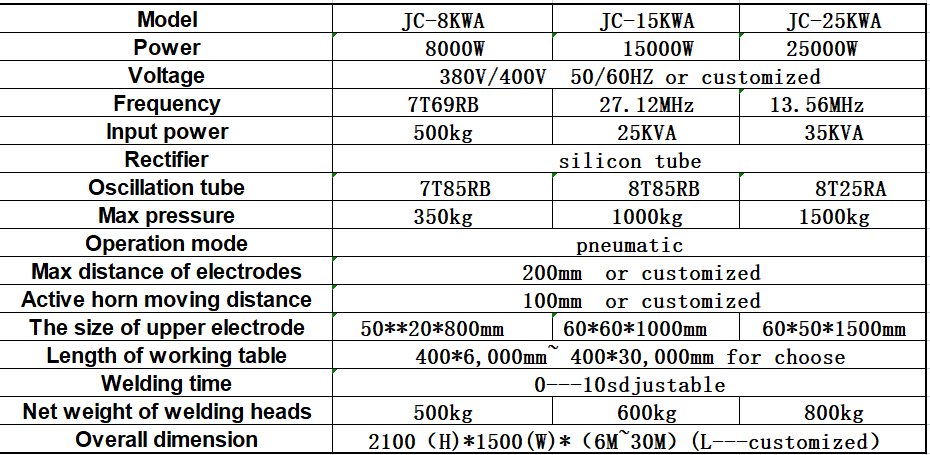

Specifications：
welding mold & samples
Working video of machines:
We already upload working video of this series machine to our YouTube video center, please kindly check the links
Mail us to get more details and latest quotation of machine
Similar design of RF PVC Tensile Fabric welding machine for reference：
- Standard design F1 shape model：JC-8KW-1
- upgrade design F2 shape model JC-8KW-F2
- big welding area design C shape model：JC-15KWC
- welding heads and electrcial box separated design model：JC-12KWH
- auto stepping for long welding material design model：JC-15KWA
other kinds of plastic welding machine for reference：
- automatic heat plate plastic clamshell and paper sealing machine model：JC-4060
- Rotation high frequency pvc blister /pvc fabric welding machine model JC-5000ET-R1
- Ultrasonic plastic welding machine for PVC,PP,ABS plastic welding：JC-2615/ JC-3215-4AC
- PVC tube boxes machine for packaging industry model：JC-200H/ JC-450S
Our Services
- Pre -sales service
- —1) Show right&clear function and detail of our machines in our website. Get Inquiry&consulting of machine directly.
- —2) Recommend the most suitable RF PVC Tensile Fabric welding machine that client need by Samples or mails.
- —3) Client could send some material to our factory to make free welding test and get expert suggestion.
- After-sales service
- —1) Training how to install the RF PVC Tensile Fabric welding machine.1-2days machine training free in our factory.
- —2) Engineers available to service machine overseasif client need and confirm in the contract
- —3) Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(expect for man made).
- —4) we will provide 24hours 7days/per week online technology support service.
Packaging & Delivery—Pallet with plywood or ply wooden case & sea delivery
