Description
Model: JC-8000GH

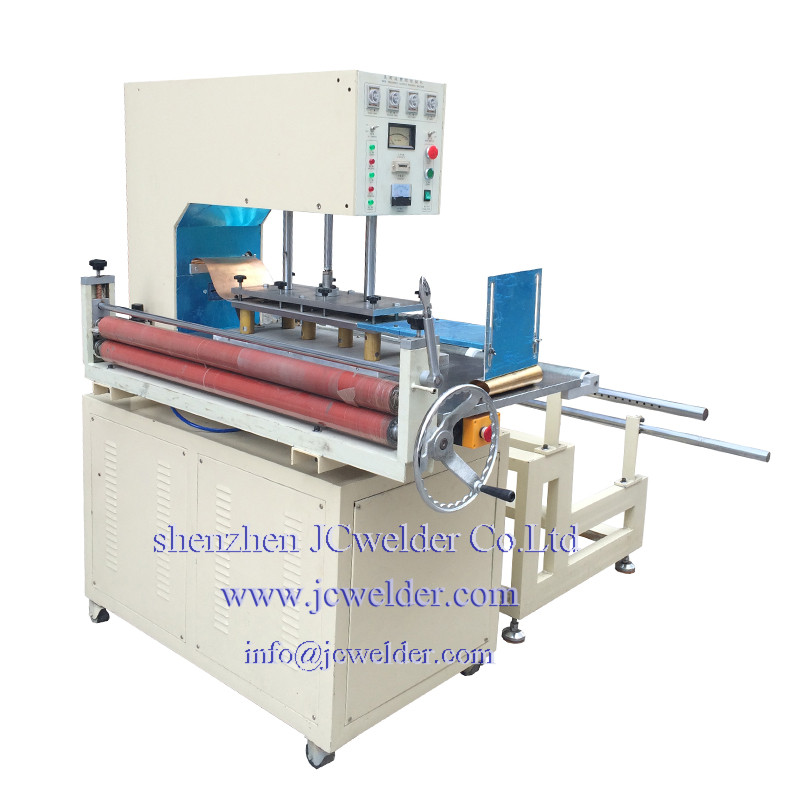

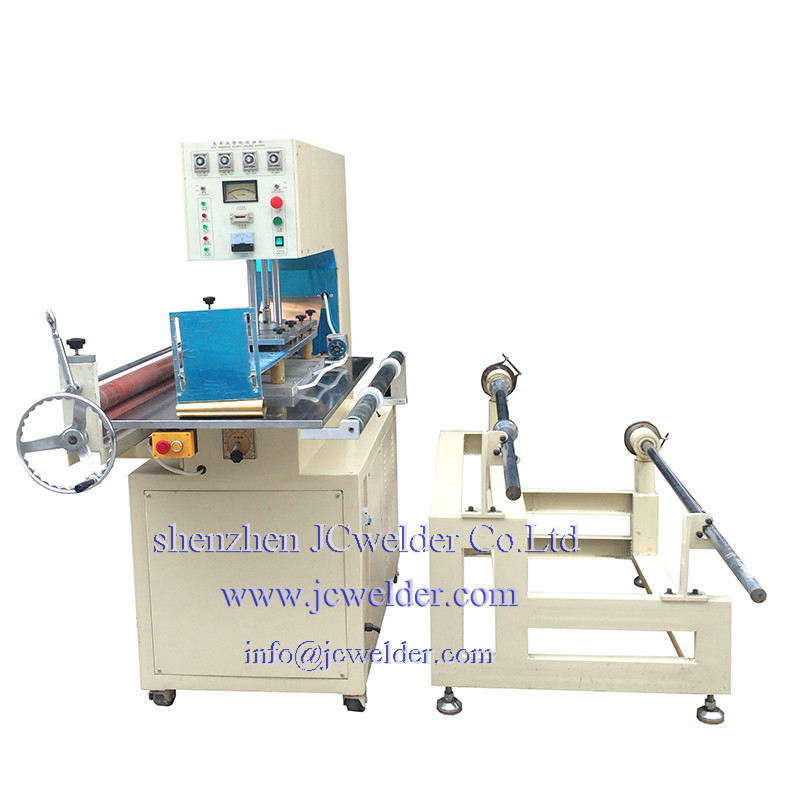

Name：rf pvc sealing machine,high frequency pvc Blood Pressure Infusion Bag sealing machine
Brief description：
rf pvc sealing machine, pvc transfusion bag welding machine high frequency plastic medicine urine bag sealing equipment
Applications:
high frequency pvc Blood Pressure Infusion Bag/pressre infusor/Medical Pressure Infusion Cuff sealing machine rf name card keeper ,plastic id card holder/clear pvc purse/tote bag pvc welding machine. Radio frequency transparent packaging/clear plastic box/clear pocket/PVC Clear Jacket welding machine auto feeding, card sleeve/card pocket/name card keeper welding machine with wash collection part for PVC, soft crease box making under continuous operation in application of high frequency welding and folding
Features:
- Feeding with PVC/EVA/PU/PETG/APET/GAG/PP materials in rolls.
- Optional of feeding-transferring material simultaneously, adjustable operating speed.
- Photo electricity induction, feeding-collecting simultaneously, precise-controlled.
- Using high Q value vibration tube for stable and reliable output
- Pneumatic pressing system, max pressure can up to 500KG
- Heated electrode welding horn holding plate for good plastic welding result
- HF generator at a stabilized frequency of 27.12MHz. + -0.6%.
- With 5557 anti-spark device, for protecting machine and mould from over current
- Feeding voltage 1/3phases,220V/380V, 50/60Hz + ground or customized
- Production speed: 4000~5000 cycles per days( 8 working hours as usual).

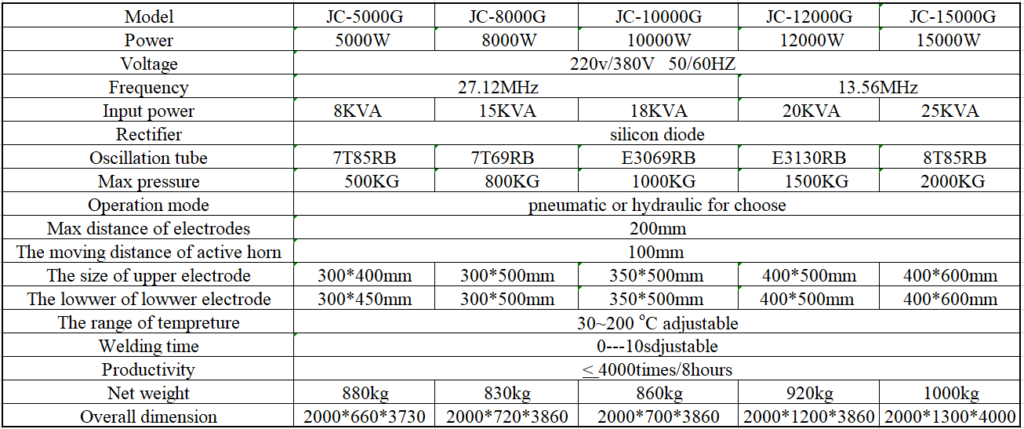

Specifications：

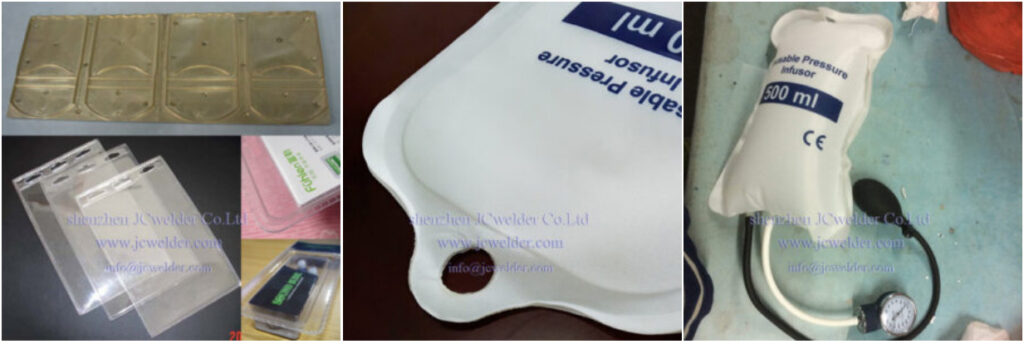

welding mold & samples
Working video of machines:
We already upload working video of this rf pvc sealing machine to our YouTube video center, please kindly check the links
Mail us to get more details and latest quotation of machine

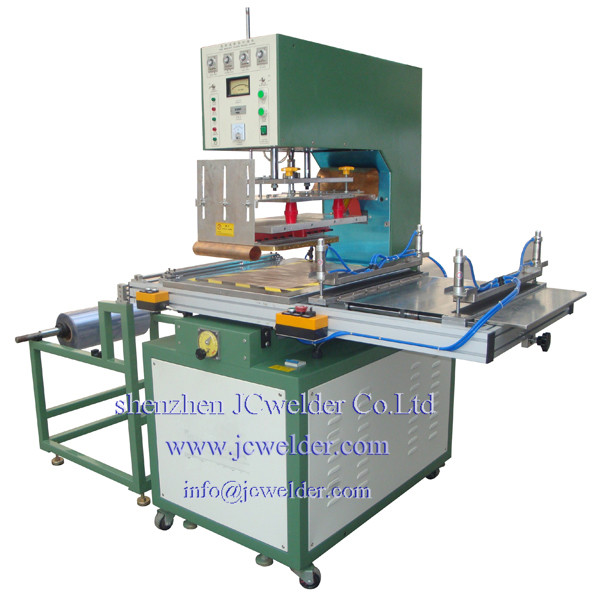

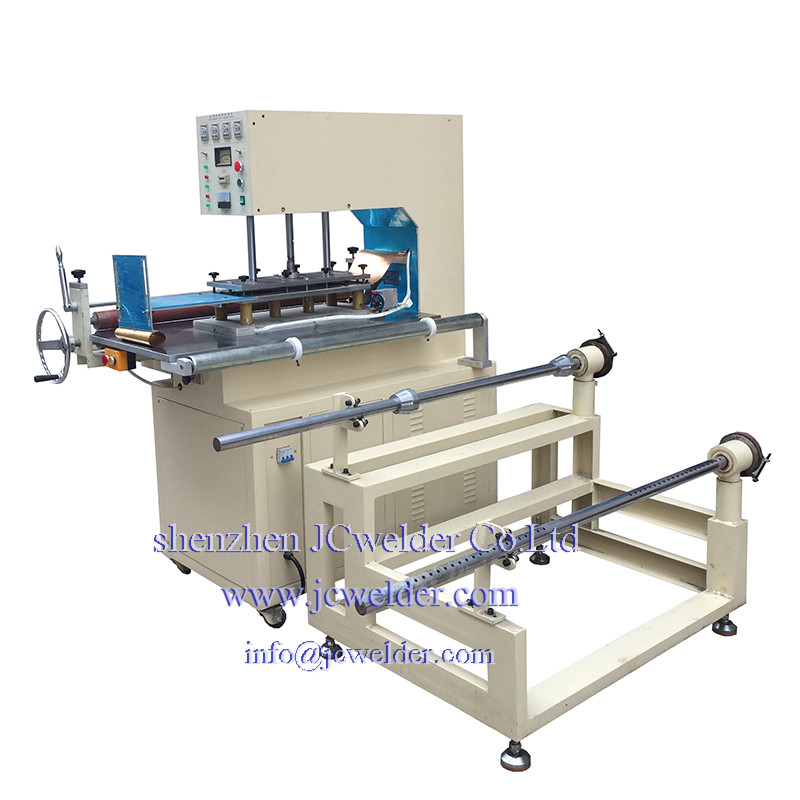

Similar design of rf pvc sealing machine for reference：
- Standard design high frequency welding machine model：JC-8000G
- upgrade design hf blister welding machine with raw material flatting system:JC-8000GZ
- New design auto draging high frequency pvc welding machine with margin material collect part：JC-8000GC
- Basic design high frequency pvc book cover welding machine：JC-8000G1
Our Services
- Pre -sales service
- —1) Show right&clear function and detail of our machines in our website. Get Inquiry& consulting of machine directly.
- —2) Recommend the most suitable rf pvc sealing machine that client need by Samples or mails.
- —3) Client could send some material to our factory to make free welding test and get expert suggestion.
- After-sales service
- —1) Training how to install the rf pvc sealing machine.1-2days machine training free in our factory.
- —2) Engineers available to service machine overseas if client need and confirm in the contract
- —3) Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(expect for man made).
- —4) we will provide 24hours 7days/per week online technology support service.
Packaging & Delivery—Pallet with plywood or ply wooden case & sea delivery
