Description

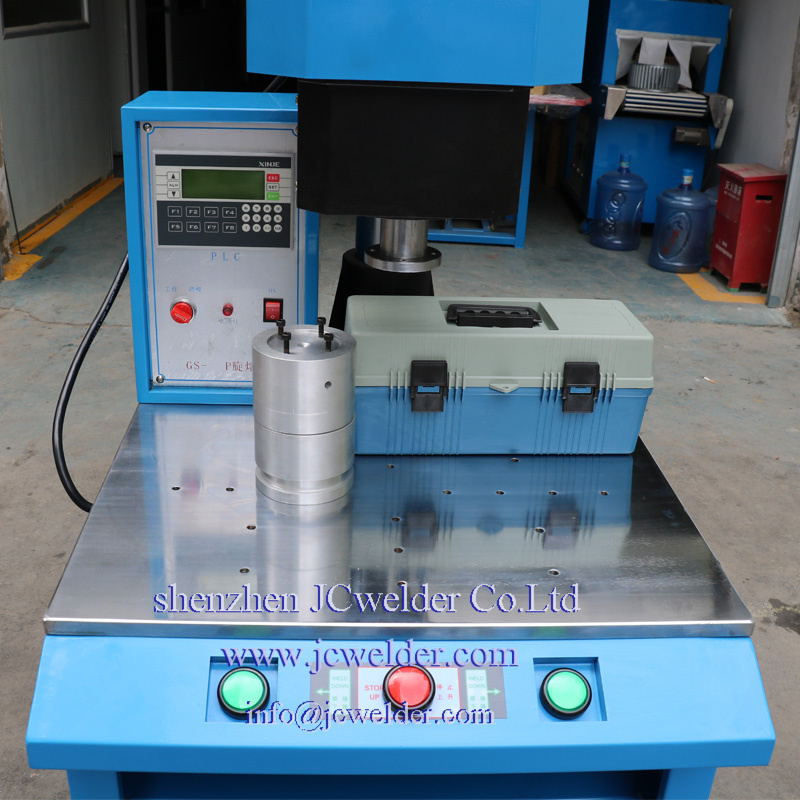

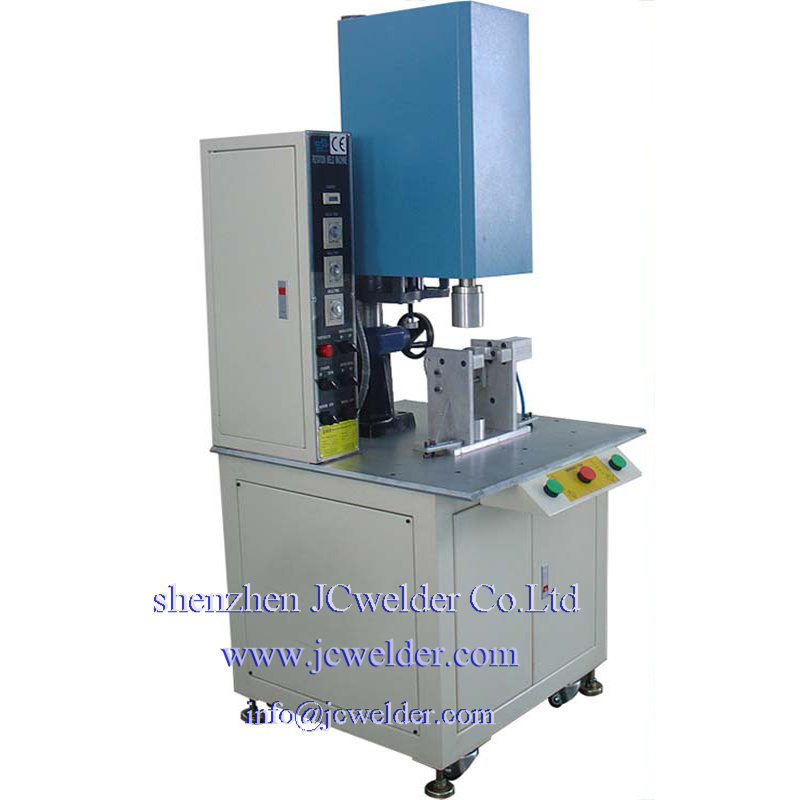

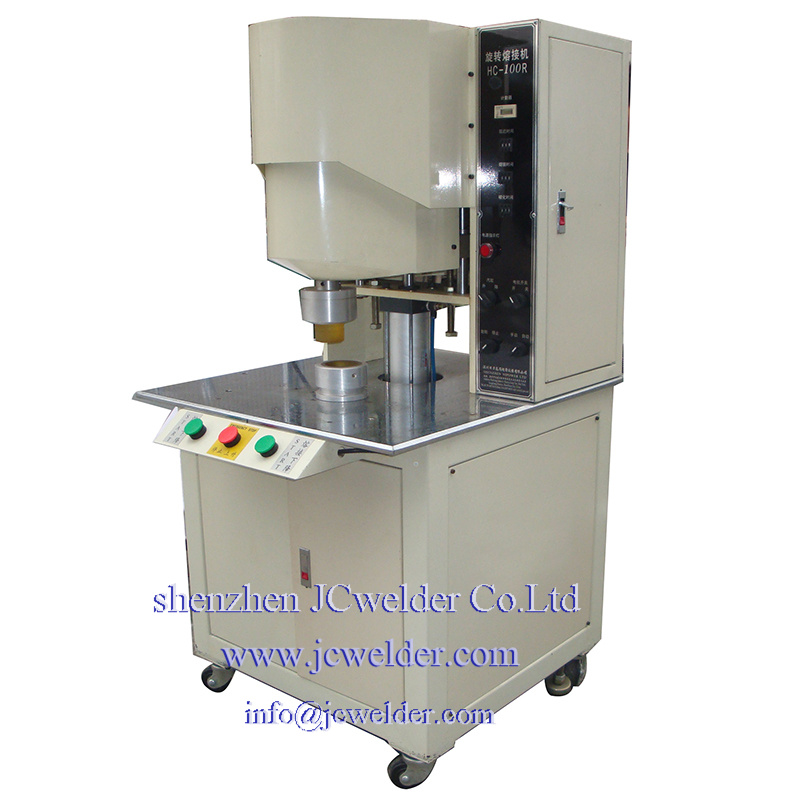

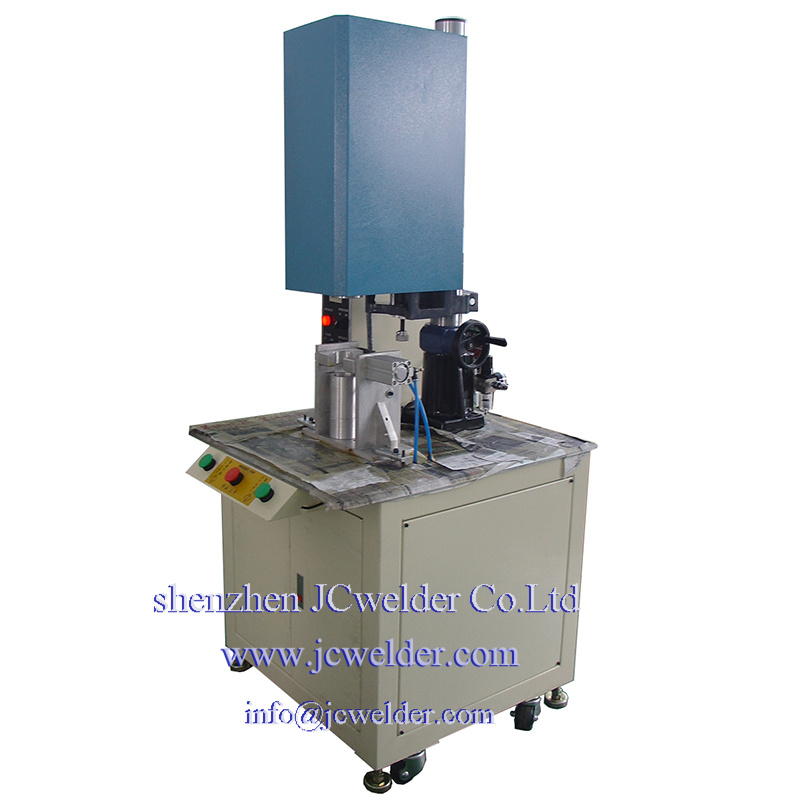

Name：Circular and Cylindrical Shape Plastic Product Welder Spin Friction Welding Machine
Model: JC-100R
Brief description：PP Filter Welding Plastic Spin Welder for Water Filter / Nylon PP Spin Friction Welding Machine
Application:
Plastic Spin Friction Welding Machine is generally used to weld two round thermoplastic plastic parts. During welding, one work-piece is fixed on the bottom mold, and the other workpiece rotates on the surface of the fixed workpiece. The rotary welding machine has a certain pressure acting on the two workpieces, and the heat generated by the friction between the work-pieces can melt the contact surface of the two workpieces and form a forbidden and airtight combination. And them, the positioning spinning is to rotate at a set time and instantly stop at the set position to become fusion.
Features:
* High-strength, Hermetically sealing joints for several dissimilar materials
* Cost-effective for round weld joints; Position-based indexing possible;
* Requires less velocity (better for engineering resins);Improved process control;
* Heat confined to weld interface; Compatible with most thermoplastics;
* Ideal for welding of PP and PE materials;No consumables, fumes, or emissions;
* Relatively fast cycle times when compared with other methods;
* Low power consumption, low maintenance, and quick-change tooling;
* Up to 150, stroke for greater versatility and easier part load and unload;
* High precision servo spin driver with orientation accuracy of +/- 0.1 degree;
* Ability to weld parts with the circular joint that is not easily welded by ultrasonic welding;
* Programmable welding methods include weld by time, rotation circles, speed, and orientation.

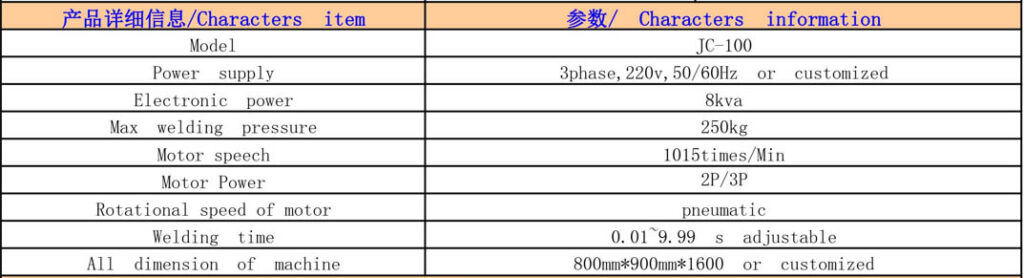

Specifications：

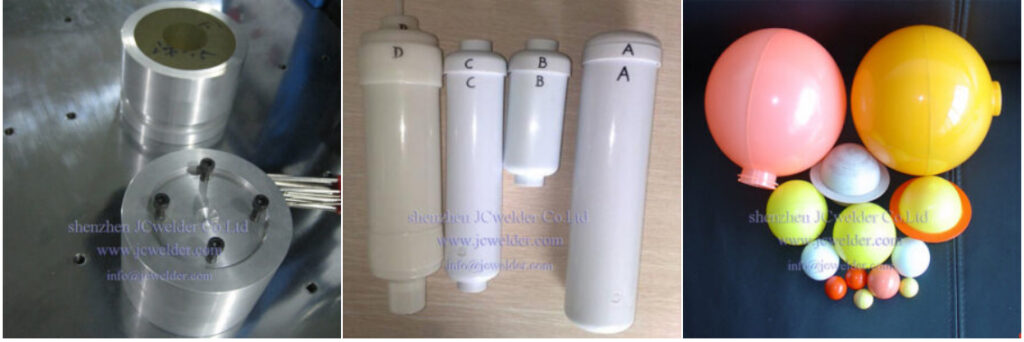

welding mold & samples：
Working video of machines:
We already upload working video of this series machine to our YouTube video center, please kindly check the links
Mail us to get more details and latest quotation of machine
other kinds of plastic welding machine for reference：
- automatic heat plate plastic clamshell and paper sealing machine model：JC-4060
- Rotation high frequency pvc blister /pvc fabric welding machine model JC-5000ET-R1
- Ultrasonic plastic welding machine for PVC,PP,ABS plastic welding：JC-2615/ JC-3215-4AC
- PVC tube boxes machine for packaging industry model：JC-200H/ JC-450S
Our Services
- Pre -sales service
- —1) Show right&clear function and detail of our machines in our website. Get Inquiry&consulting of machine directly.
- —2) Recommend the most suitable Hydraulic Swing Arm slipper cutting machine that client need by Samples or mails.
- —3) Client could send some material to our factory to make free welding test and get expert suggestion.
- After-sales service
- —1) Training how to install the Hydraulic Swing Arm slipper cutting machine .1-2days machine training free in our factory.
- —2) Engineers available to service machine overseasif client need and confirm in the contract
- —3) Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(expect for man made).
- —4) we will provide 24hours 7days/per week online technology support service.
Packaging & Delivery—Pallet with plywood or ply wooden case & sea delivery
