Description
Model: JC-5KWT

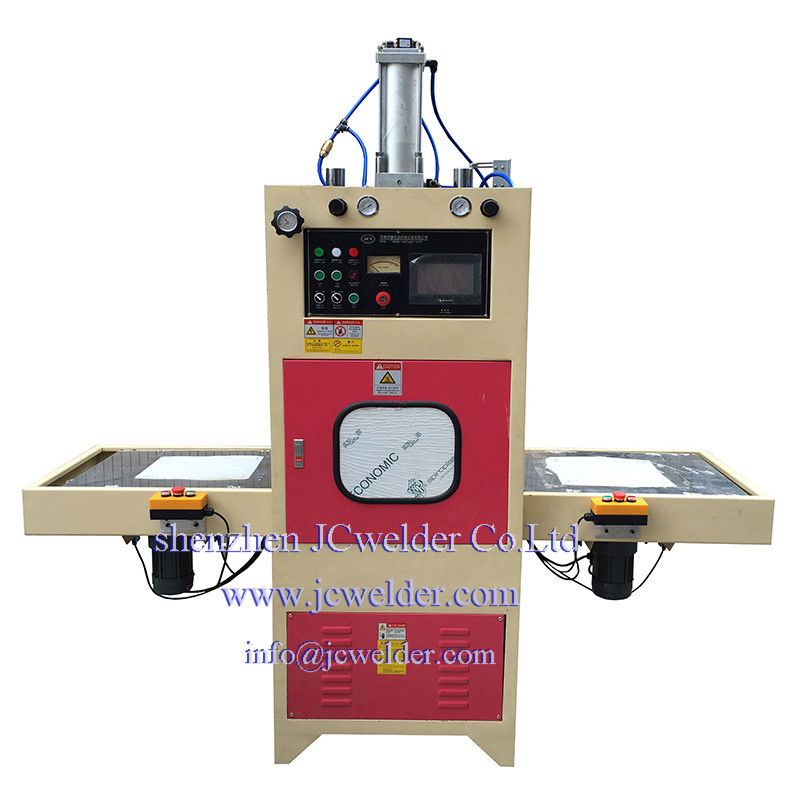

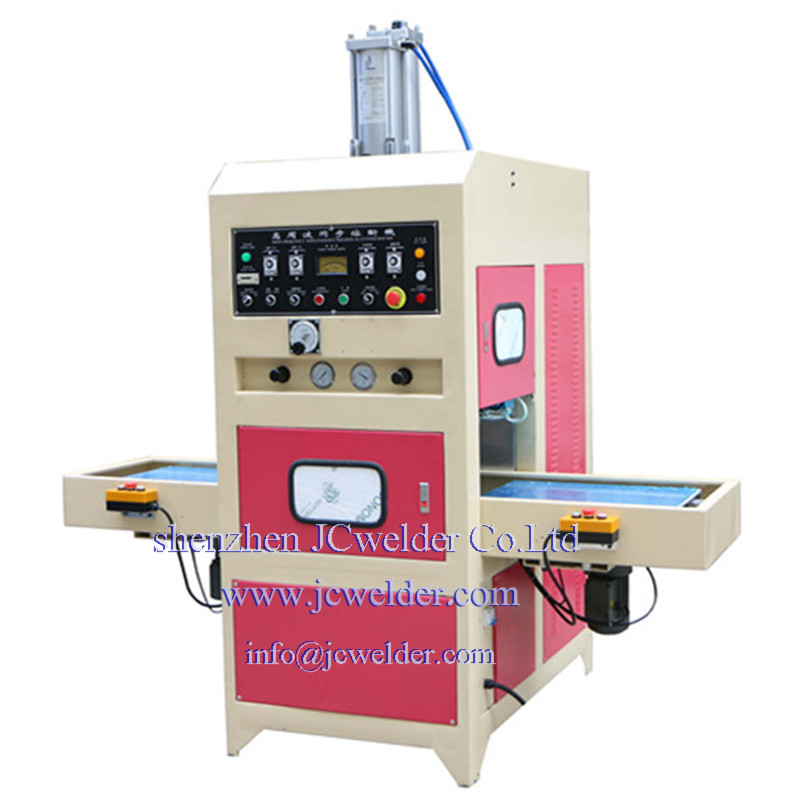

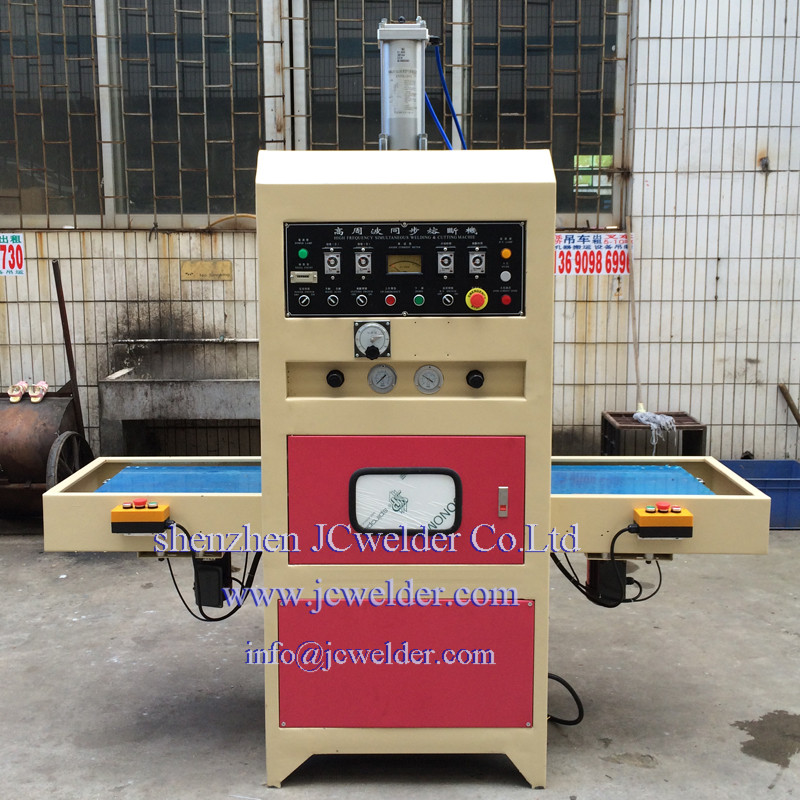

Name：high frequency PVC clear pillow boxes making machine PET soft crease box production
Brief description：
radio frequency pvc clear pillow boxes welding machine for making clear packaging box soft crease folding lines
Applications:
high frequency PVC clear pillow boxes making machine PET soft crease box production.It is also suitable for embossing on handbag, small spraying toys,leather products,carpet,plastic inflatable products clothes and shoes embossing tool, trademark,box,air tool,carpet,package bag,heat water bag,medical treatment articles,stationary,photo album,physical good,pvc folding box,glass box,tent,etc.garment logo welding and shoe upper welding
Features:
- Install high Q oscillation value in the machine which is stable and reliable in output.
- sliding two working positions can be operated alternatively to improve the production
- Pneumatic press system, max pressure can up to 800~1200KG
- The oscillation frequency is authorized industrial frequency band of 27.12MHz ± 0.6%
- Easy Operation–New design of toggle motion lever principle allows easy operation
- Working voltage can be 3 phases, 380V/400V, 50/60Hz + ground or customized
- This is most ideal for products which required complicated alignments.
- NL-5557 high sensitive anti-flash device, prevent machine & mould from over current
- With high precision temperature controlling can assure the coherence of welding

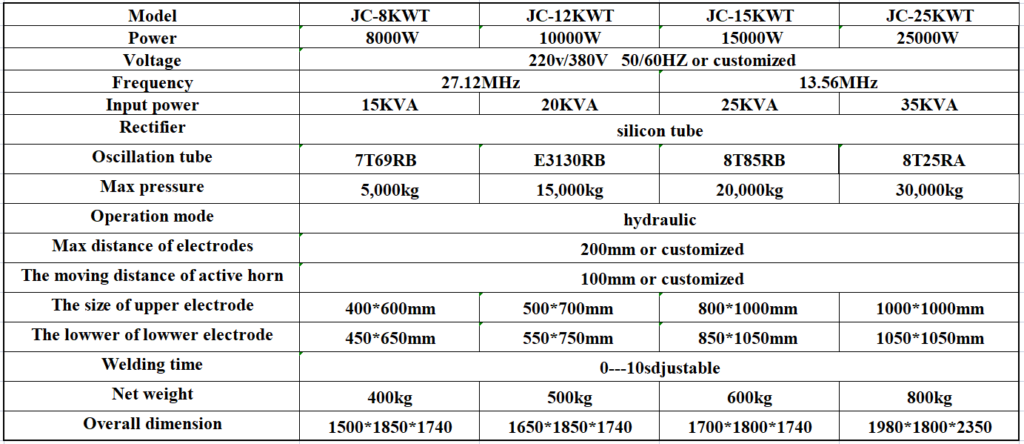

Specifications：

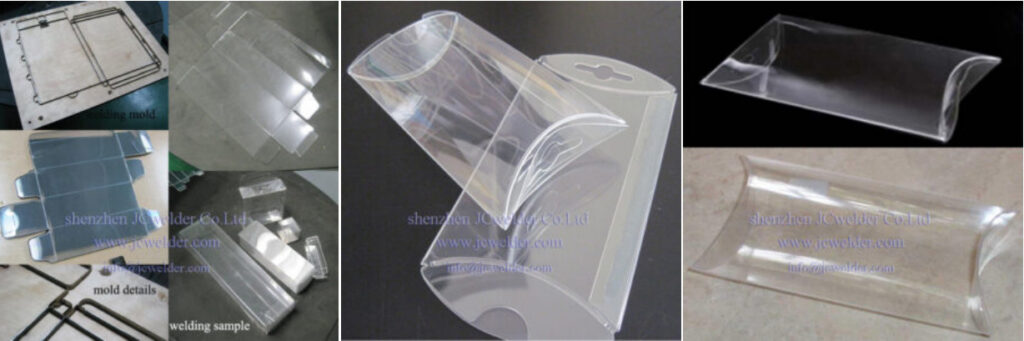

welding mold & samples
Working video of machines:
We already upload working video of this series machine to our YouTube video center, please kindly check the links
Mail us to get more details and latest quotation of machine
Our Services
Pre -sales service
- 1) Show right&clear function and detail of our machines in our website. Get Inquiry&consulting of machine directly.
- 2) Recommend the most suitable pvc tube candy box machinethat client need by Samples or mails.
- 3) Client could send some material to our factory to make free welding test and get expert suggestion.
After-sales service
- 1) Training how to install the plastic tube box makingmachine .1-2days machine training free in our factory.
- 2) Engineers available to service machine overseasif client need and confirm in the contract
- 3) Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(expect for man made).
- 4) we will provide 24hours 7days/per week online technology support service.
Packaging & Delivery—Pallet with plywood or ply wooden case & sea delivery
