Description

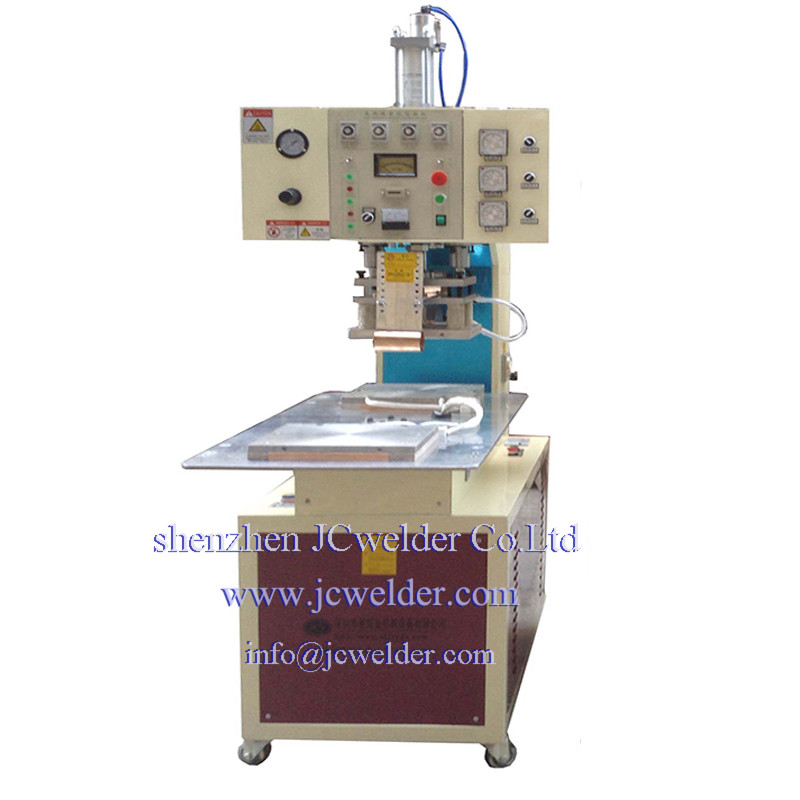

Model: JC-5KWS

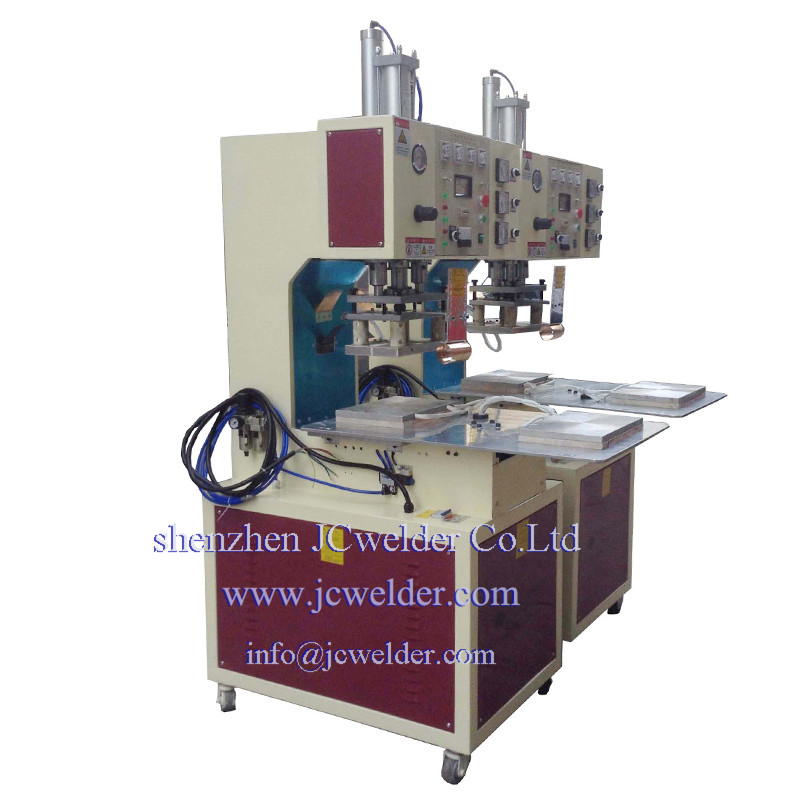

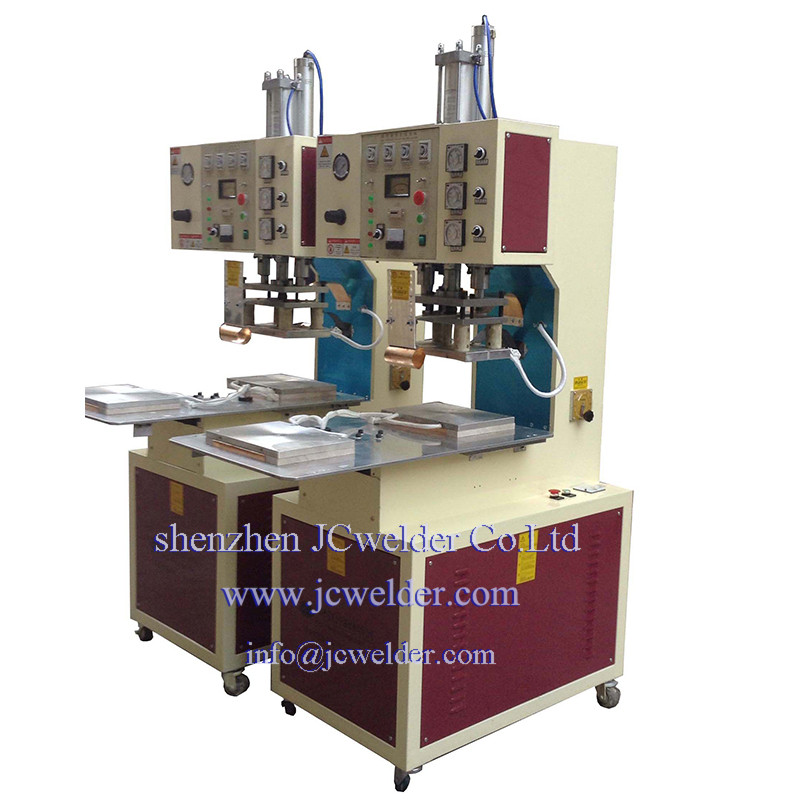

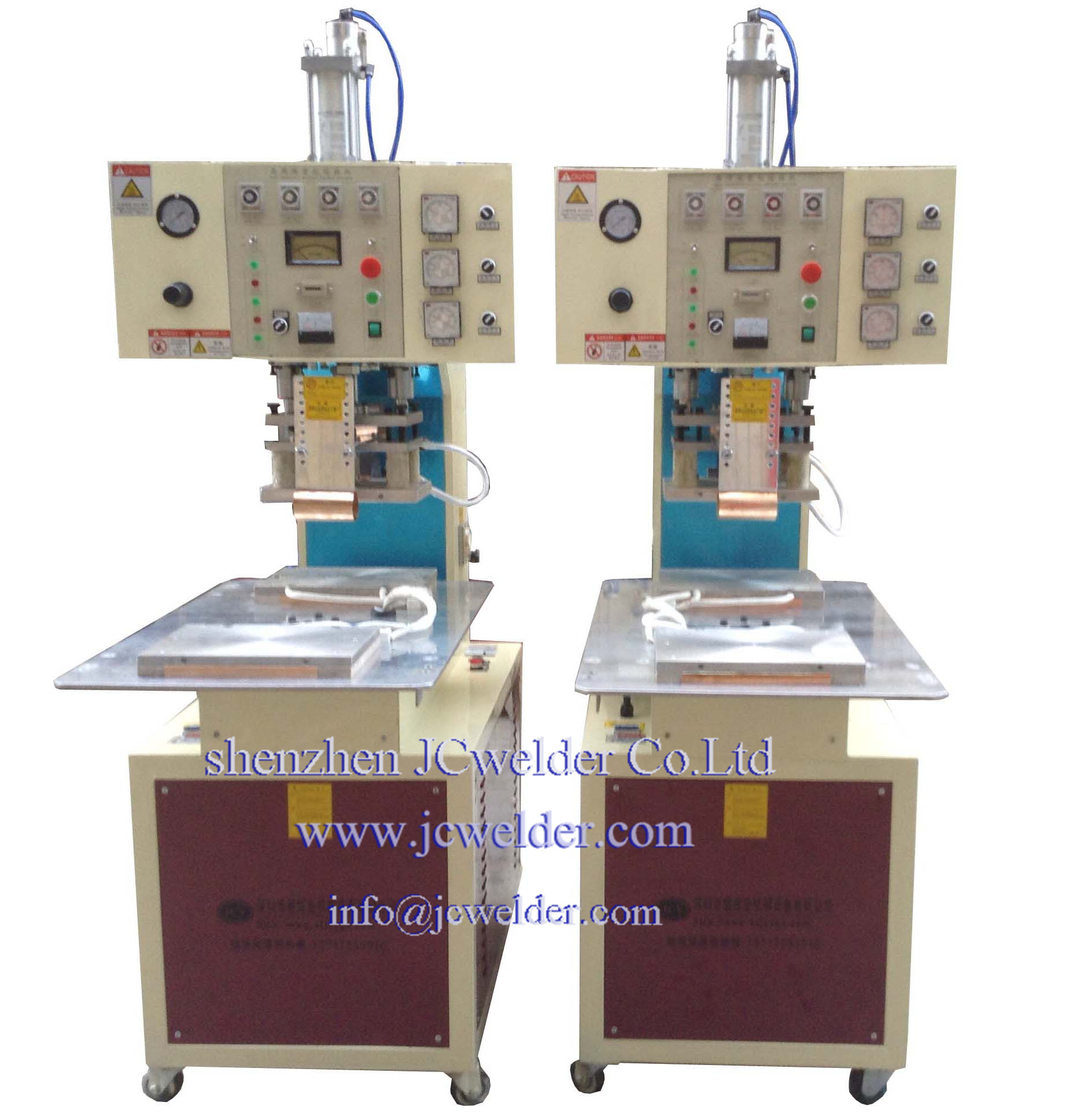

Name：high frequency plastic smart phone cover welding machine rf smart case making
Brief description：
Rotation rf ipad phone smart Flip Case welding machine customized tablet PC protect cover sealing equipment
Applications:
high frequency plastic smart phone cover welding machine rf smart cellphone case/ phone cover/tablet PC cover/ipad smart case/cellphone case making equipment.It is also suitable for embossing on handbag, small spraying toys,leather products,carpet,plastic inflatable products clothes and shoes embossing tool, trademark,box,air tool,carpet,package bag,heat water bag,medical treatment articles,stationary,photo album,physical good,pvc folding box,glass box,tent,etc.garment logo welding and shoe upper welding
Features:
- Install high Q oscillation value generator in the machine,stable and reliable in output.
- Square working table with two working positions which need to rotate by hand
- pneumatic pressing system with hydraulic part as assistant, max pressure is 2000KG
- Heated electrode welding horn holding plate for good plastic welding result
- HF generator at a stabilized frequency of 27.12MHz. + -0.6%.
- With 5557 anti-spark device, protecting machine &mould from over current
- Feeding voltage 1/3phases,220V/380V, 50/60Hz + ground or customized
- Production speed: 3000~4000 cycles per days( 8 working hours as usual).
- Electric resistances and temperature control by a thermo regulator.
Specifications：

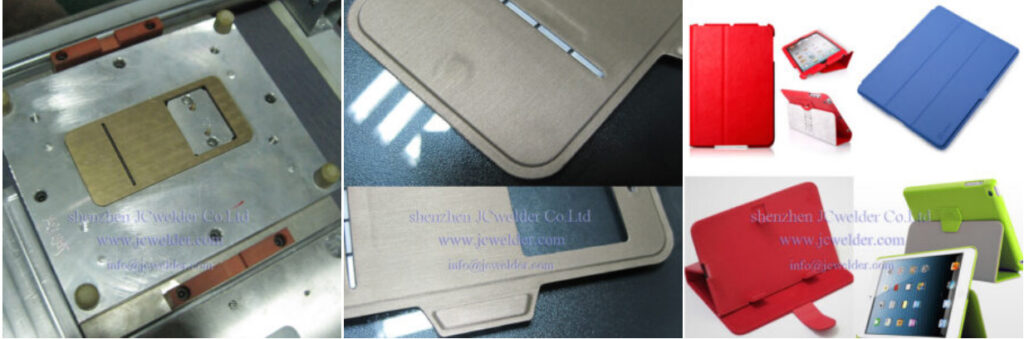

welding mold & samples
Working video of machines:
We already upload working video of this series machine to our YouTube video center, please kindly check the links
Mail us to get more details and latest quotation of machine
Our Services
Pre -sales service
- 1) Show right&clear function and detail of our machines in our website. Get Inquiry&consulting of machine directly.
- 2) Recommend the most suitable pvc tube candy box machinethat client need by Samples or mails.
- 3) Client could send some material to our factory to make free welding test and get expert suggestion.
After-sales service
- 1) Training how to install the plastic tube box makingmachine .1-2days machine training free in our factory.
- 2) Engineers available to service machine overseasif client need and confirm in the contract
- 3) Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(expect for man made).
- 4) we will provide 24hours 7days/per week online technology support service.
Packaging & Delivery—Pallet with plywood or ply wooden case & sea delivery
